pv magazine test – November 2022 results

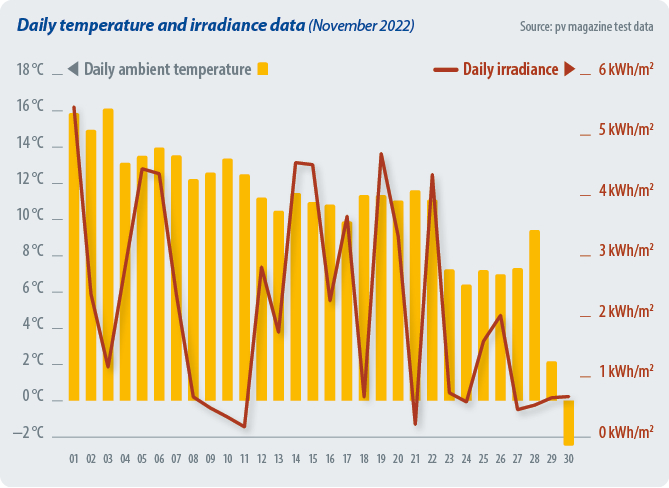

The first chart shows the meteo station data (irradiance and ambient temperature) for November 2022. The average bifacial boost is 5.42% for November 2022. Bifacial boost is defined as the relative advantage of the average specific energy yield of all bifacial products compared to the average specific energy yield of all mono-facial mono PERC products.

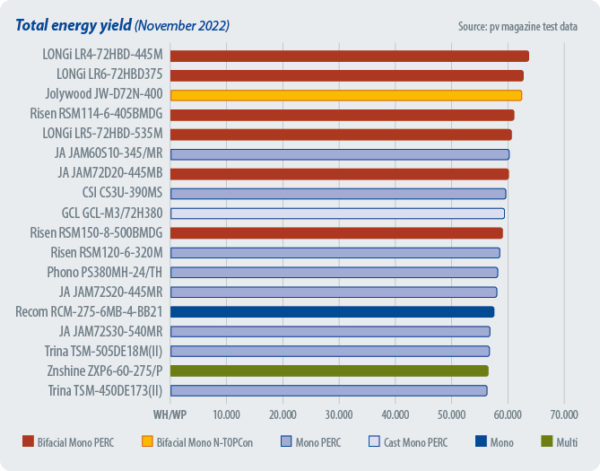

This chart shows the relative specific energy yield comparison between different PV module technologies. Although the top performer is Longi’s bifacial PERC module, the average specific energy yield of the bifacial TOPCon category leads over the average specific energy yield of modules in the bifacial PERC category.

Our test field only has one sample from Jolywood in the n-TOPCon bifacial category. As TOPCon modules become more prominent, we look forward to installing more samples of this type to achieve a more representative yield comparison.

Energy yield measurements

  • The energy yield comparison among various technologies, including bifacial boost, will be analyzed using products installed after the beginning of 2019.
  • The energy yield is given in Wh/Wp and calculated by dividing the energy produced by the module by the Pmax at STC of the module. This Pmax is the maximum STC power after a process of stabilization.
  • The results are grouped in categories, per module type.
  • The bifacial boost depends on many parameters: the bifaciality factor, the installation geometry, the albedo of the ground, and the sun angle and diffuse irradiance. The ground in this case is gray gravel.

Specific energy yield ranking – historical

#Installation monthProductTypeTotal
Aug. 2022 Wh/Wp
Sept. 2022 Wh/Wp
Oct. 2022 Wh/Wp
Nov. 2022 Wh/Wp
August 2022 RankSept. 2022 RankOct. 2022 RankNov. 2022 Rank
3701/05/2021LONGi LR4-72HBD-445MBifacial Mono PERC143.509119.40982.77363.7693111
2628/08/2019LONGi LR6-72HBD375Bifacial Mono PERC143.915119.11082.05462.7991222
2731/12/2019Jolywood JW-D72N-400Bifacial Mono N-TOPCon143.548118.94481.87262.5712333
2815/04/2020Risen RSM114-6-405BMDGBifacial Mono PERC137.974114.91479.51961.1545544
3820/11/2021LONGi LR5-72HBD-535MBifacial Mono PERC137.379114.94378.95160.6974455
31*01/10/2020JA JAM60S10-345/MRMono PERC129.848109.91977.52460.311101076
34*01/07/2021JA JAM72D20-445MBBifacial Mono PERC135.082113.65078.14960.1717667
29*07/07/2020CSI CS3U-390MSMono PERC131.246110.28877.08659.7438898
3007/07/2020GCL GCL-M3/72H380Cast Mono PERC131.025110.17976.97759.50099109
3201/07/2021Risen RSM150-8-500BMDGBifacial Mono PERC136.052112.41377.14259.12767810
2101/03/2019Risen RSM120-6-320MMono PERC114.944101.89674.32358.66016161311
2021/11/2018Phono PS380MH-24/THMono PERC128.141107.75475.37358.27811121212
35*01/07/2021JA JAM72S20-445MRMono PERC125.579109.43075.57058.12113111113
1024/05/2018Recom RCM-275-6MB-4-BB21Mono102.93993.50571.23057.62717171714
36*20/11/2021JA JAM72S30-540MRMono PERC120.753106.56473.78856.90715141415
40*20/11/2021Trina TSM-505DE18M(II)Mono PERC125.670106.72873.66656.81512131516
2304/05/2019Znshine ZXP6-60-275/PMulti102.46992.48770.51956.56918181817
33*01/07/2021Trina TSM-450DE173(II)Mono PERC122.415105.83373.30056.40014151618
*Purchased products from the market, which bypassed the random sampling process. All other products were provided by the suppliers.


Bifacial boost

All in Wh/WpTotal Aug. 2022Total Sept. 2022Total Oct. 2022Total Nov. 2022
Average monthly yield128.72109.3576.6659.40
Average monthly bifacial yield139.88116.2080.1261.46
Average monthly monofacial Mono PERC yield125.82107.6275.2558.30
Operation days31303130
Average daily yield4.153.652.471.98
Average daily bifacial yield4.513.872.582.05
Average daily monofacial yield4.063.592.431.94
Bifacial boost11.17%7.97%6.48%5.42%
