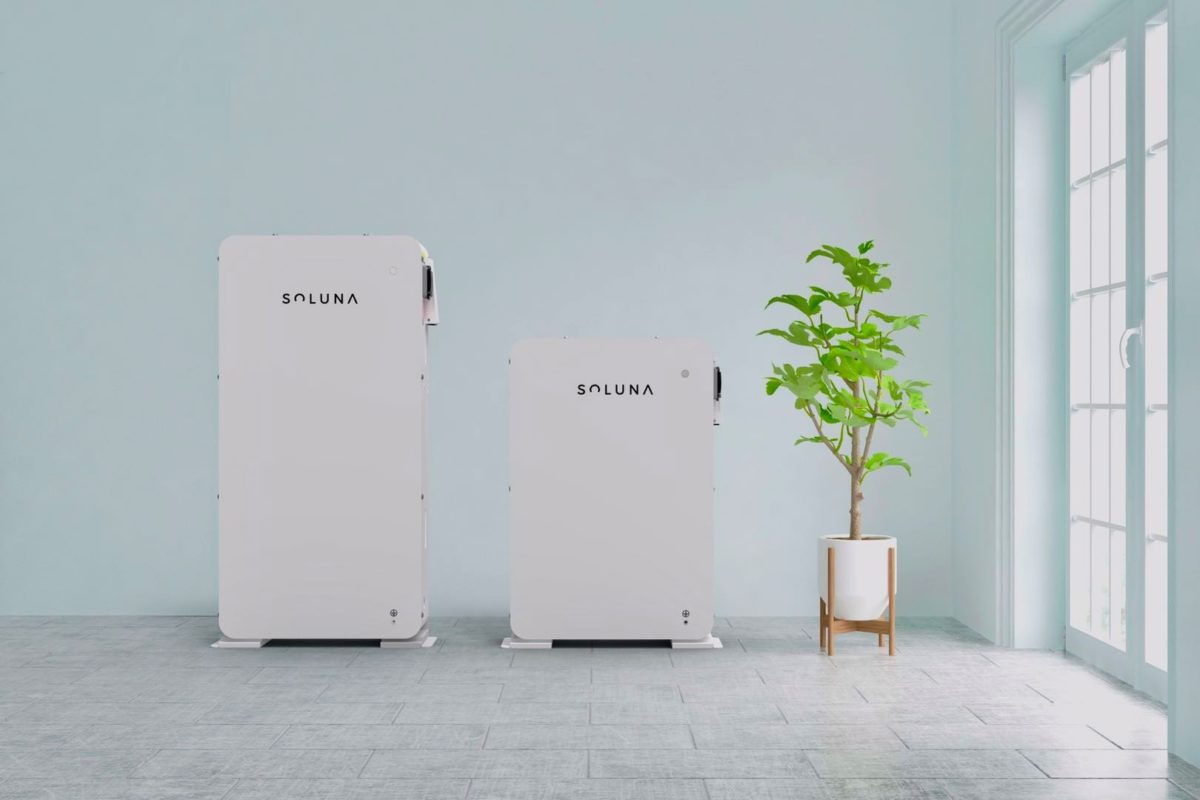

Shanghai-based battery manufacturer Soluna has unveiled a lithium iron phosphate (LFP) battery for applications in residential buildings with a high consumption profile and in commercial and industrial buildings.
“The new Soluna HV 20K will supply the total capacity at 20kWh, with 95% depth of discharge (DoD) at 10 years warranty,” the company said in a statement, noting that the device can be combined in a 4-unit configuration and reach a capacity of 80 kWh.
With four batteries installed in parallel, DC power can reach up to 200 A, and with a power system of 10 kW, the battery has the ability to charge and discharge at 50 A.
The battery measures 1289x625x252 mm and has a weight of 200 kg. Its voltage is 204.8 V and the operating temperature ranges from -10 to 50 Celsius degrees. Performance is guaranteed for over 6,000 cycles.
“With the latest WI-FI technology and monitoring system, Soluna will provide a better and quicker after-service platform for distributors and installers,” the manufacturer said.
The battery will be available for sale starting from Q1 2022.
This content is protected by copyright and may not be reused. If you want to cooperate with us and would like to reuse some of our content, please contact: email@example.com.
If these are capable of operating at -10C the cells must be Yttrium Doped, so that eliminates certain brannds of cells. It would be nice to know more of the technical specs including Inverter Output (what Voltages & Frequencies).
Suggestion for PV Mag.
A “HUGE” Number of people are looking at Battery Solutions which I think should be pretty obvious but alas, there is no comprehensive listing of what is available & where…
On-Grid coupled, Off-Grid, Hybrid, with Inverter & SCC or Not (supply own AIO or Other). Sadly some people think that a Tesla PowerWall is all there is and that is just wrong….
