pv magazine test: March 2022 results

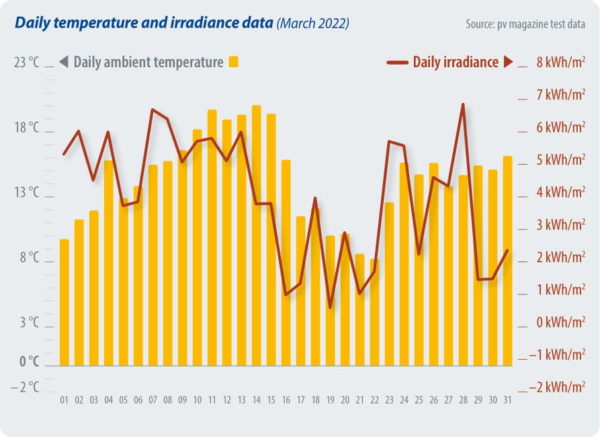

The first chart to the right shows the meteo-station data (irradiance and ambient temperature) for March 2022. The average bifacial boost for the testing period is 7.0%. To clarify, bifacial boost is defined as the extra energy yield of the bifacial products compared to the average energy yield of all monofacial mono PERC products.

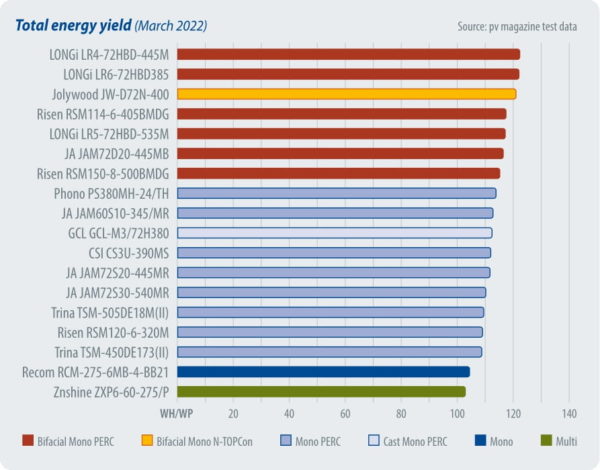

The chart to the bottom right compares different PV module technologies for March 2022. Bifacial modules are performing better than monofacial modules, and bifacial TOPCon leads over bifacial PERC. Please note that our test field only has one sample from Jolywood in the “n-TOPCon” category and one sample from Znshine in the “multi” category.

Notes on energy yield

  • The energy yield comparison among various technologies, including bifacial boost, will be analyzed using products installed after the beginning of 2019.
  • The energy yield is given in Wh/Wp and is calculated by dividing the energy produced by the module by the Pmax at STC of the module. This Pmax is the maximum STC power after a process of stabilization.
  • The results are grouped in categories, per module type.
  • The bifacial boost depends on many parameters: the bifaciality factor, the installation geometry, the albedo of the ground, and the sun angle and diffuse irradiance. The ground in this case is gray gravel.

George Touloupas

Bifacial boost
all in Wh/WpTotal Dec 2021Total Jan 2022Total Feb 2022Total Mar 2022
Average monthly yield91.2871.45103.22113.39
Average monthly bifacial yield93.7773.36106.75118.96
Average monthly monofacial Mono PERC yield89.6169.90101.08111.15
Operation days30252831
Average daily yield3.042.863.693.66
Average daily bifacial yield3.132.933.813.84
Average daily monofacial yield2.992.803.613.59
Bifacial boost4.6%5.0%5.6%7.0%
Energy yield ranking
#Installation MonthProductTypeTotal Dec 2021 Wh/WpTotal
2022 Wh/Wp
2022 Wh/Wp
2022 Wh/Wp
Dec 2021 RankJan 2022 RankFeb 2022 RankMar 2022 Rank
372021/5/1LONGi LR4-72HBD-445MBifacial Mono PERC96.9575.484108.31122.4661121
262019/8/28LONGi LR6-72HBD375Bifacial Mono PERC95.4974.441109.36122.2512212
272019/12/31Jolywood JW-D72N-400Bifacial Mono N-TOPCon93.5773.636107.25121.1334333
282020/4/15Risen RSM114-6-405BMDGBifacial Mono PERC91.9371.763104.86117.5687764
382021/11/20LONGi LR5-72HBD-535MBifacial Mono PERC93.1273.218106.22117.2935455
34*2021/7/1JA JAM72D20-445MBBifacial Mono PERC93.7073.067106.53116.5873546
322021/7/1Risen RSM150-8-500BMDGBifacial Mono PERC91.6371.941104.74115.4048677
202018/11/21Phono PS380MH-24/THMono PERC91.1470.833101.97113.9919898
31*2020/10/1JA JAM60S10-345/MRMono PERC92.0670.671101.22113.00969119
302020/7/7GCL GCL-M3/72H380Cast Mono PERC89.6469.705100.46112.58612141310
292020/7/7CSI CS3U-390MSMono PERC90.3969.397100.07112.15110151511
35*2021/7/1JA JAM72S20-445MRMono PERC89.3570.439102.96111.8591311812
36*2021/11/20JA JAM72S30-540MRMono PERC89.8170.177101.50110.33611121013
40*2021/11/20Trina TSM-505DE18M(II)Mono PERC87.8769.247100.72109.68516171214
212019/3/1Risen RSM120-6-320MMono PERC89.2269.971100.31109.18414131415
33*2021/7/1Trina TSM-450DE173(II)Mono PERC87.0268.46699.89108.98018181616
102018/5/24Recom RCM-275-6MB-4-BB21Mono88.1570.55298.68104.55315101717
222019/5/4Znshine ZXP6-60-275/PMulti87.3569.36797.39103.09917161818
*Purchased products from the market, which bypassed the random sampling process. The rest of the products were provided by the suppliers.

Test cooperation

pv magazine test is a cooperative effort involving pv magazine, APsystems, CEA and Gsolar. All testing procedures are carried out at Gsolar’s test laboratory in Xi’an, China. CEA supervises these tests and designed both the indoor and outdoor testing procedures.
