pv magazine test: November 2023 results



With more modules and a range of different dimensions and electrical specifications expected to join our program in 2024, it is high time for an upgrade to our pv magazine test installation. For this purpose, the plant was taken offline in the second half of November 2023, meaning the results show only 14 days of data for the month. We will introduce details of our outdoor field upgrade in the second part of this article.

During the adjustment period, three new modules, using different technologies, completed the first round of laboratory testing and are set to be added to the outdoor array. Results for the indoor testing of these modules – a positively doped “p-type” back contact panel, a tunnel oxide passivated contact (TOPCon) product, and a heterojunction (HJT) device – are published on pv-magazine.com. Meanwhile, more products are making their way through the indoor test stages as we write and will be added to the outdoor array in due course.

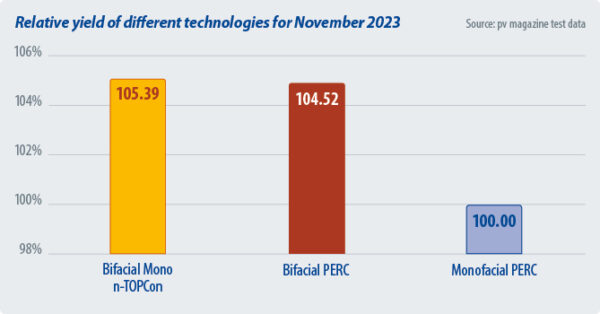

The chart below provides the irradiance and ambient temperature data for November 2023. Products with advanced cell technology such as n[n-type]TOPCon, nHJT and back contact are beginning to make up a larger share of our product pool, leading to obvious performance deviations with respect to passivated emitter rear contact (PERC) panels. Hence, we decided to group products with similar cell technology together and report different technology separately.

Specific energy yield ranking of n-type bifacial (TOPCon and HJT) modules

#Installation monthProductTypeSample selection methodTotal
November 2023 Wh/Wp
November 2023 Rank
422023/6/5DAS DH144NAn-TOPCon344.131
272023/6/5Jolywood JW-D72N-400n-TOPCon342.122
502023/9/1Astronergy CHSM72N(DG)/F-BH-580n-TOPCon342.093
432023/6/23Tongwei TWMND-72HD565n-TOPCon341.974
472023/9/1HY NT10/72GDF-565n-TOPCon341.875
452023/8/15Trina TSM-NEG9RC.27n-TOPCon341.816


Specific energy yield ranking of bifacial PERC modules

#Installation monthProductTypeSample selection methodTotal
November 2023 Wh/Wp
November 2023 Rank
412022/12/18Tongwei TH550PMB6-58SDCBifacial PERC144.661
372021/5/1LONGi LR4-72HBD-445MBifacial PERC343.122
262019/8/28LONGi LR6-72HBD375Bifacial PERC142.513
382021/11/20LONGi LR5-72HBD-535MBifacial PERC341.594
282020/4/15Risen RSM114-6-405BMDGBifacial PERC341.175
322021/7/1Risen RSM150-8-500BMDGBifacial PERC140.436
342021/7/1JA JAM72D20-445MBBifacial PERC240.397


Specific energy yield ranking of monofacial modules

#Installation monthProductTypeSample selection methodTotal
November 2023 Wh/Wp
November 2023 Rank
442023/9/1AIKO A600-MAF72MwN-back contact342.261
312020/10/1JA JAM60S10-345/MRPERC240.932
302020/7/7GCL GCL-M3/72H380Cast PERC140.923
292020/7/7CSI CS3U-390MSPERC240.684
202018/11/21Phono PS380MH-24/THPERC140.385
352021/7/1JA JAM72S20-445MRPERC240.156
212019/3/1Risen RSM120-6-320MPERC140.147
362021/11/20JA JAM72S30-540MRPERC238.728
102018/5/24Recom RCM-275-6MB-4-BB21Mono138.169
222019/5/4Znshine ZXP6-60-275/PMulti137.5010
Note: sample selection method categorization: Sample 1 randomly selected by CEA from a large production lot; Sample 2 purchased from the market by CEA; Sample 3 provided by supplier, without random selection


Bifacial boost

All in Wh/WpTotal Aug. 2023Total Sep. 2023Total Oct. 2023Total Nov. 2023
Average monthly yield133.43103.62102.6840.36
Average monthly bifacial yield142.29108.65105.9142.08
Average monthly monofacial PERC yield129.1299.28100.3740.20
Operation days23292814
Average daily yield5.803.573.672.88
Average daily bifacial yield6.193.753.783.01
Average daily monofacial PERC yield5.613.423.582.87
Bifacial TOPCon boostN/A10.88%5.74%5.22%
Bifacial PERC boostN/A8.21%5.32%4.23%%
All technologies bifacial boost10.20%9.16%5.52%4.69%


The average bifacial boost was 4.69% for November 2023. Bifacial boost is the relative advantage of the average specific energy yield of all bifacial products compared to the average specific energy yield of all monofacial PERC products.

System upgrades

To improve measurement accuracy and prepare for a larger number of products, we have upgraded various aspects of the outdoor test system including its mounting system and inverters as well as the systems used to measure module performance. As new, larger-sized samples join our test program, we have detected some shading risks at the edges of modules in mornings and evenings, the effects of which we previously had to filter from the published results. To eliminate this effect, and to create space for more samples, we decided to rearrange th e layout of all samples with different dimensions. The new layout is explained in the schematic below.

We have reinstalled – and will now install all new modules – horizontally, except for some special products, such as Longi’s hybrid passivated back contact (HPBC) panels, which have self-cleaning properties that depend on orientation. In addition to the change of module layout, we reduced the tilt angle of our mounting structure to reduce the risk of shading.

We also took advantage of the break to conduct regular calibration of the energy meters. It is important to note that in our outdoor field consistency among various meters is more important than the absolute accuracy of each meter. A pre-calibrated, high-accuracy meter is used as a reference standard meter. After checking the data, the largest deviation among various meters was about 1.2%. We consider this deviation good enough for our outdoor test field program.

New microinverters

As the pv magazine test program receives more high-power modules from various manufacturers, high-capacity microinverters are needed to support these products. At the end of 2023, a new microinverter type, the HMS series from Hoymiles, was introduced to the test field (see boxed text below.)

High-powered solution

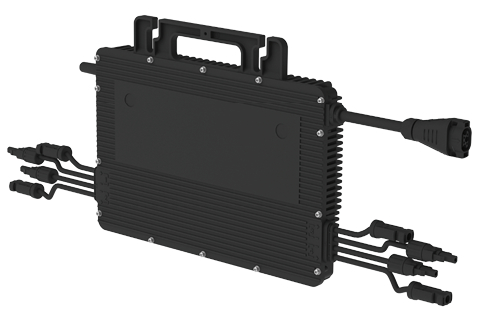

Upgrades to the pv magazine test system include the addition of the Hoymiles HMS series microinverters – the latest four-in-one microinverters from the Chinese manufacturer. They come with 2,000 volt-amps of output power, allowing integration with up to four panels, each with independent MPPT and monitoring capabilities. The HMS series includes a sub-1 gigahertz wireless connection, ensuring stable, uninterrupted communication. Hoymiles says the product is designed for easy installation and simplified maintenance, thanks to its Flex cable system. The manufacturer says this system is inspired by toy building blocks and ensures a straightforward setup without complex wiring or interconnection – reducing installation time by up to 70%. The product features rapid shutdown capability and an isolated transformer and conforms to other industry standards.

All products in our test field are now connected to the HMS-1800B microinverter. One of the advantages that led us to choose this product is its two maximum power point trackers (MPPTs) with four pairs of input connectors design, plus the ability of “Y-connecting” two pairs of connectors in parallel to support high current modules. With this flexibility, we will be able to support both high power and low power modules with the same microinverter type while ensuring there is separate MPPT for each product. This renders our system design much more convenient for maintenance and it also helps to reduce performance deviation among different products due to hardware differences. We evaluated the performance of this inverter by connecting two modules from the same type and batch, and with a very similar standard-testing-condition [STC] power rating, to different MPPTs and observing the performance deviation after a period of operation. The Wh/Wp difference between two MPPTs was below 0.8%, which also includes the maximum power difference between two samples. This result enhanced our confidence in the reliability of the set-up and the measurement accuracy of our outdoor testing system.

Energy yield measurements

The energy yield comparison among various technology, including bifacial boost, is analyzed using products installed after the beginning of 2019. The energy yield is given in Wh/Wp and calculated by dividing the energy produced by the module by its maximum power point (Pmax) at STC for the module. This Pmax is the maximum STC power after a process of stabilization. The results are grouped into categories, per module type. The bifacial boost depends on many parameters: bifaciality factor, installation geometry, albedo of the ground, the sun angle and diffuse irradiance. The ground, in this case, is gray gravel.

Test cooperation

pv magazine test is a cooperative effort ­involving pv magazine, CEA, Gsolar, and Hoymiles. All testing procedures are carried out at Gsolar’s test laboratory in Xi’an, China. CEA supervises these tests and designed both the indoor and outdoor testing procedures.
