A group of researchers from Chinese PV module maker DAS Solar has created a new methodology to detect hot spot risks in TOPCon solar cells and modules based on back-contact (BC) architecture.
“We found that the inherently low shunt resistance of TOPCon BC cells renders the conventional inflection point method specified in IEC 61215 MQT09 ineffective in identifying the hot-spot risks of the modules, which in turn leads to an evaluation process that is both time-consuming and less accurate,” the research's lead author, Dengyuan Song, told pv magazine. “To address this technical bottleneck, our research team proposed a two-level collaborative equivalent circuit model for substring-module systems, which directly resolves the non-inflection-point issue encountered in IEC 61215 MQT09 testing caused by the low shunt resistance of TOPCon BC cells.”

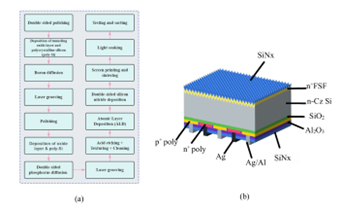

Image: DAS Solar
The scientists constructed dedicated equivalent circuit model at the substring level to simulate power dissipation characteristics under diverse partial-shading conditions, establishing a direct quantitative correlation between hot-spot power density and temperature rise. “The accuracy and robustness of the proposed model were comprehensively validated through dual verification of indoor controlled experiments and outdoor field measurements,” said Song. “The results demonstrated that the predicted temperature variation trends were in close agreement with real-world test data, confirming the practical reliability and industrial applicability of the proposed method.”
For their experiments and experimental validation, the scientists chose TOPCon BC solar cells with a area of 191.37 cm² from the same production line, ensuing consistent manufacturing parameters. The cells were categorized according to the following criteria: 0.1% efficiency interval, 5 mV open-circuit voltage interval, and uniform film color. Cells showing abnormal photoluminescence (PL), electroluminescence (EL), or appearance defects were excluded. Qualified cells were subjected to the standard TOPCon BC module fabrication process, including ink printing, solder paste application, series welding, lamination stacking, lamination curing, EL testing, frame assembly, junction box installation, and final current-voltage (I-V) testing.
As encapsulation materials, the scientists used coated semi-tempered ultra-white embossed front glass with thickness of 2.0 mm and high transmittance, an ethylene-vinyl acetate (EVA) film, and uncoated semi-tempered ultra-white embossed rear glass with a thickness of 2.0 mm featuring three middle holes and grid glazing.
“All other components were of the same model and batch,” Song specified. “To ensure experimental consistency, all modules were fabricated on the same production line under identical process parameters, resulting in three modules designated as A, B, and C.”
Image: DAS Solar
Hot-spot temperature tests were conducted under two sets of conditions, indoor steady-state conditions and outdoor operating conditions at the company's demonstration base in Quzhou, China.
The results showed that the peak hot-spot temperatures of TBC modules reached 119 C (indoor) and 114 C (outdoor), respectively. Furthermore, consistent temperature variation trends were observed across substring-level shading tests, module-level shading tests, and outdoor field shading tests, verifying the repeatability and stability of the test results.
“In conclusion, this study validates the reliability of the proposed hot-spot evaluation method, providing important technical guidance for the standardized assessment of hot-spot risks in TOPCon BC modules,” Song concluded. “It is worth noting that under actual outdoor operating conditions, factors such as natural air convection and array inverter regulation exert complex coupling effects on the temperature behavior of TOPCon BC modules. Importantly, the proposed method enables rapid and accurate identification of the shading area corresponding to the maximum power dissipation of the modules, which significantly improves the efficiency of hot-spot risk testing compared with conventional methods.”
The research's findings were presented in “Circuit model-driven investigation of hot-spot behavior in n-type TBC photovoltaic modules,” published in Solar Energy Materials and Solar Cells.
