Choosing representative strings for measuring power loss


The first time Lucie Garreau-Iles visited the location where the solar plant she was to investigate was installed, framed with willowy grasses 1.5 meters high, it probably had the romantic impact that many tourists love so much when traveling in the Mediterranean region.

As enchanting as it probably was, it was also one of the reasons why the analysis of the monitoring data originating from the 3.5 MW solar plant wasn’t leading anywhere.

Garreau-Iles works as Technical Regional Manager at DuPont Photovoltaic Solutions in a team which investigates the health of solar plants. For this mission, she needed to investigate whether the yield of the eight-year-old installation could be improved.

pv magazine Virtual Roundtables Europe 2020

 How can asset managers, O&M-contractors, and project developers ensure high yields? And to what extent can they increase them? These essential questions will be discussed at the 2020 pv magazine Roundtable Asset Management session. Join us on June 9 to meet speakers from Allianz Global Investors, JinkoSolar, DuPont Photovoltaic Solutions, and Ariel Re.  More information and free registration.

Popular content

High-altitude floating PV has energy payback time of 2.8 years
15 July 2024 New research from Switzerland showed that alpine floating PV systems can outperform lowland or ground-mounted counterparts in terms of energy yield an...

From the monitoring data, it was even difficult to judge whether the plant had a yield problem, because the weather sensors were also intermittently failing; meanwhile, there was no data for the first two years of operation, and missing or invalid data thereafter. This may not have been relevant to the investor, however, since high feed-in-tariffs secured enough revenue.

Determining power loss

During her field visit in the summer of 2019, Garreau-Iles found many modules with snail trails and delaminated EVA sheets. “There were high visual impacts,” she said. With snail trails, delamination and microcracks, it is not obvious to what extent a module's power is affected. This only becomes apparent when microcracks develop into full cracks, parts of the cells are no longer fully connected, and yield declines.

The challenge in such cases is to determine the power loss with the least effort. This is for two main reasons: (i) to avoid spending too much money before it is clear that work is necessary; and (ii) because the stakeholders want to know the exact numbers, even when it is clear the modules have to be exchanged.

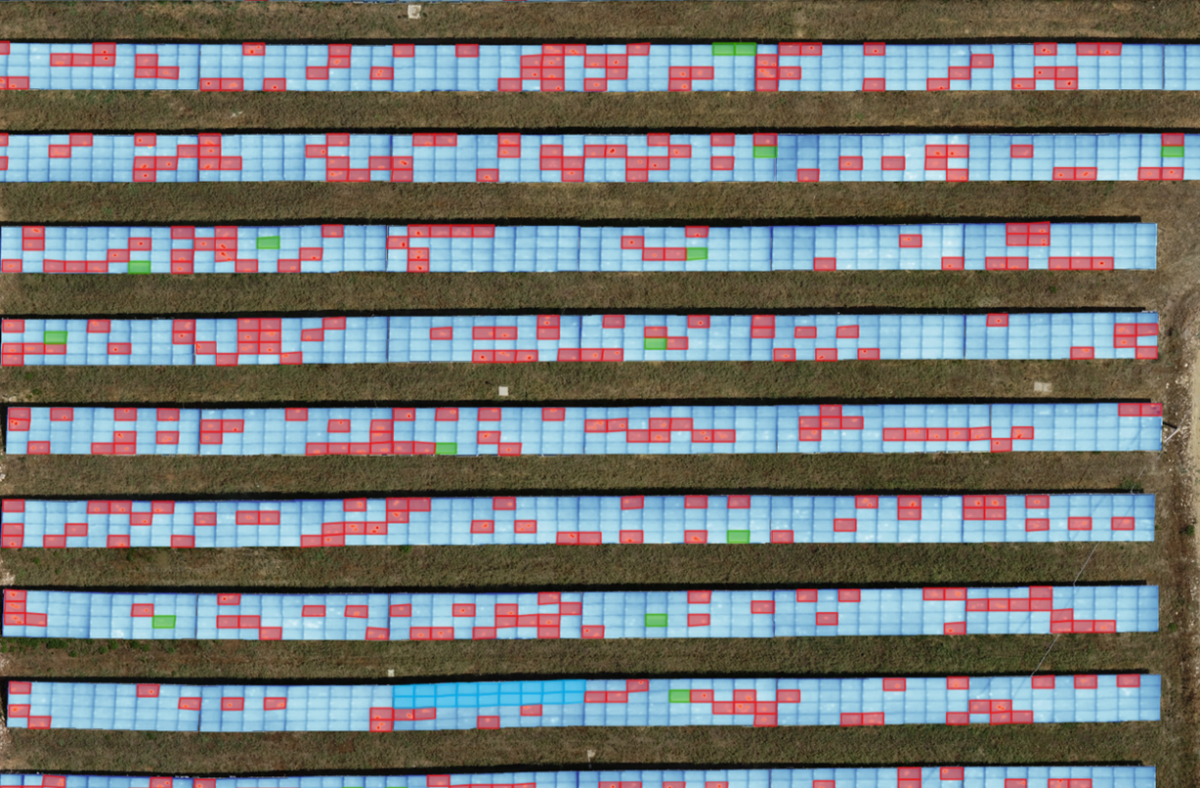

As a next step, the experts commissioned drone IR-thermography. On the images, it was clearly visible that hotspots had spread over the whole module field. They were visible on roughly 20% of the panels. This indicated that it is was worth further investigation, since deeper analysis could lead to a better understanding of the losses. It was still unclear how much the power loss and a potential yield gain would be when the installation was revamped.
