From pv magazine Germany

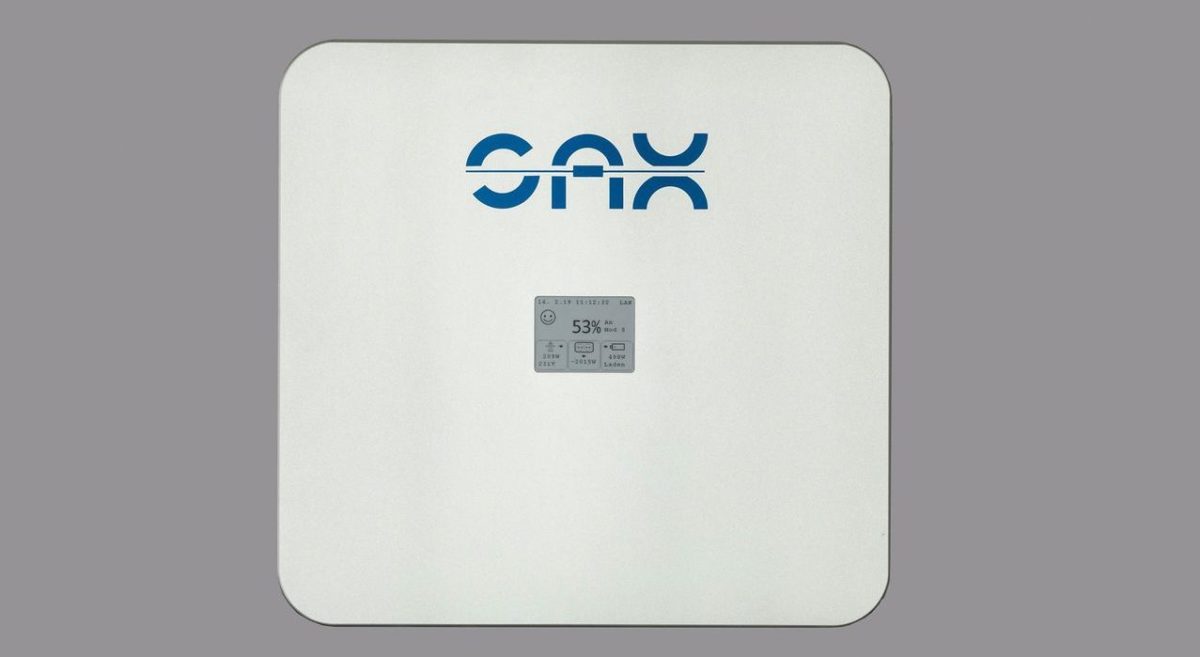

German start-up Sax Power GmbH is offering a residential AC battery it says works entirely without an inverter and has 50% more capacity and service life than conventional batteries.
According to its specifications, the battery stores direct current and can deliver both alternating current and direct current. The conversion is not carried out by transistors such as IGBTs or MOSFETs, but via the software of the battery management system. By interconnecting with cascaded H-bridges, the cell blocks can be controlled individually. That enables the system to build a sinusoidal curve typical of alternating current from the individual DC voltage values. It also increases efficiency, since the conversion is purely electronic. Sax states the efficiency of its solution is 99%. The option of plugging the battery into a main socket is a further innovation, according to the company.
Sax Power said, in this type of device the current is measured by folding current transformers. That means no cables have to be disconnected in a household network. In addition, a second current measurement of the same type is carried out on the feeding line to the house. The battery then receives the information it needs for optimal use, via wireless communication units.
The manufacturer said some performance can be lost with the plug-in device, which has a nominal power output of 3.7 kW. The standard product, without the plug-in, has an output of 4.6 kW.
The battery comes with lithium iron phosphate cells and the capacity of the basic model is 5.2 kWh but it can be expanded with extra modules to 15.6 kWh. The nominal current is 20 A, or 16 A with the plug-in installation.
The company offers a 10-year guarantee for the device, which weighs 52kg and is said to be easier for installers to mount as they do not have to handle an inverter.
In May, the product received a German Innovation Award and Sax Power said it will be on display in October at the EES storage fair held alongside The Smarter E trade event. The developer said its product has qualified as a finalist for the EES Award at this year's show.
A price for the product can be found on the Sax Power website. The basic version is listed as costing €5,079. In a version with wireless communication and a better smart meter, the device costs €5,210. It will be sold in series from autumn.
This content is protected by copyright and may not be reused. If you want to cooperate with us and would like to reuse some of our content, please contact: firstname.lastname@example.org.
A device that converts DC to AC is an inverter. They may be using a novel method to accomplish this, but it’s still an inverter.
It turns out that it is not exactly a DC to AC conversion, but rather a construction of an AC wave from individual switching of associated groups of cells, following a sinusoidal sequence.
What Will be the charging source?
The AC plug that it is connect to the wall outlet with.
H-bridges are made of IGBT’s or Mosfets. This company has not made AC directly from a DC source with clever software; they have used clever software to repurpose some of the BMS’s IGBT’s or Mosfets for the the task, assuming the BMS has H-bridges large enough to handle the full current required to produce the claimed 20A of output current.
Another point: An inverter is a “purely electronic” device. To claim 99% efficiency just because their device is “purely electronic” begs one to question the company’s honesty.
Says it doesn’t use an inverter to generate AC and then describes it’s process which is exactly how an inverter works.
Please explain the magic hbridge that doesn’t use a transistor?
More detail, mppt or charging method
Please can you tell me . It will be charged from Solar panel and after full charging , backup of full load or 3000 Watt, how long its work or in hours?
Thanks if you have any video please share with me. Thanks
It plugs into the a/c wall outlet.
If used at full rating, it has 2 1/2 hours of power.
>$1000 per kilowatt.
Seams to be going backward not forward in progress.
Sounds like a good idea, but will it be so good at practice?
Does anybody know the release date, I wanna try it
Its price is more then double the combined cost of inverter and lithium ion battery . Sax power should review its price.
